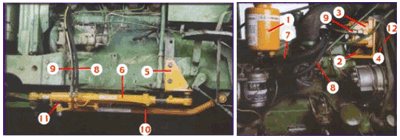

1. Oil reservoir.
  2. P/S pump connection parts and support
  3. Mount hydraulic oil pump
  4. Hydraulic pump pelley will be installed
  5. The lift assembly bracket should be tifted to the engine body
  6. Lift valve and piston will be installed completed lift is with rod and the center is 800 mm.
  7. 5 / 8 R6 hose from reservoir to pump fasten hose clamps
  8. Return hose fron lift to reservoir 3 / 8 R6
  9. Assemble pressure hose 5 / 16 R1 from hydraulic oil pump to valve
  10. Drag link will be installed. Complete rod with rod and the center is 880 mm.
  11. While installing the long on to the lift command arm be sure that installing should slightly not by force other wise the sterring does not work properly the screw (8mm) must be tughtened into the center of valve command arm hole.
  12. The "V" belt ( 17 x 1400 ) will be installed.
  13. Use special sae 10 or 20 (1 lt.) start engine check oil level and some more if necessary, check fastening bolts and hoses after 1 week
  14. The adjust screw of the pressure valve.


        Top ^

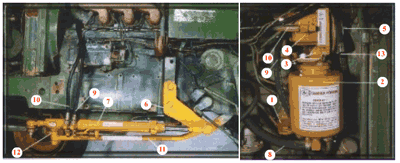

  1. Mounting braced for reservoir
  2. Oil reservoir.
  3. Mount and bracked for hydraulic steering pump
  4. Mount hydraulic oil pump
  5. Steering pump pulley will be mounted
  6. The lift assembly bracket should be tifted to the engine body
  7. Lift cylinder will be mounted tue lift cylinder has center of 765 and closed rods
  8. 5 / 8 R6 hose from reservoir to pump fasten hose clamps
  9. Return hose fron lift to reservoir 3 / 8 R6
  10. Assemble pressure hose 5 / 16 R1 from hydraulic oil pump to lift
  11. Drag link will be mounted. Center of rof id 805mm
  12. While installing the long on to the lift command arm be sure that installing should slightly not by force other wise the sterring does not work properly the screw (8mm) must be tughtened into the center of valve command arm hole.
  13. The "V" belt ( 17 x 1400 ) will be installed.
  14. Use special sae 10 or 20 (1 lt.) start engine check oil level and some more if necessary, check fastening bolts and hoses after 1 week
  15. The adjust screw of the pressure valve.
